Bulk Head Elbow
| ITC-HSN: | 87089900 |
| Minimum Order Quantity: | 500 |
| Accept Small Orders | No |
| Fulfilment Capacity (Per Month): | 10000 |
| Country Of Origin: | India |

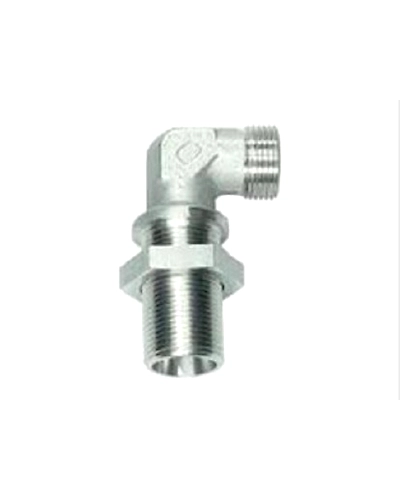

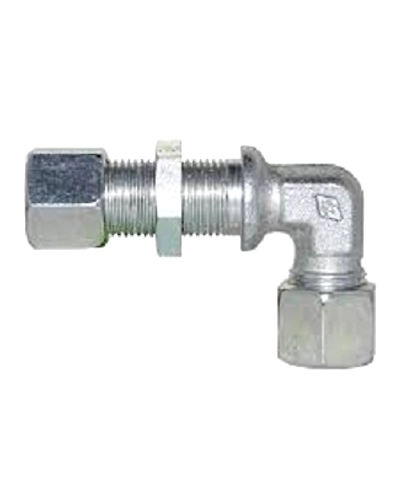

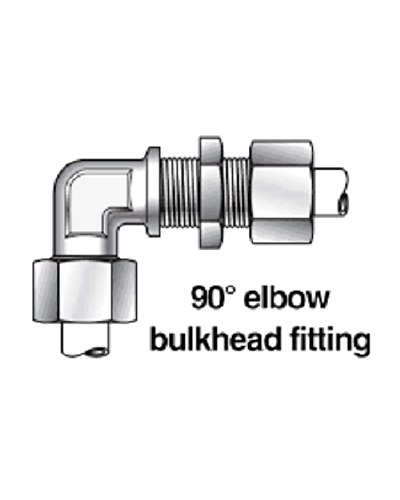

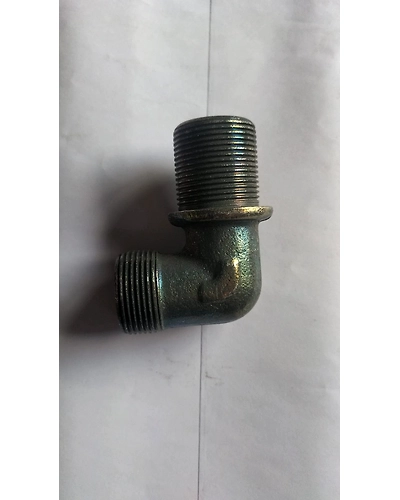

A Bulkhead Elbow is a specialized pipe or tube fitting designed to provide a 90-degree change in direction while passing securely through a wall, panel, or bulkhead. It features a bulkhead-style body that includes a locknut and sealing washer to ensure a tight and stable installation through a fixed surface.
Key Features:
Connection Type: 90-degree elbow with bulkhead mount
Thread/Port Options: BSP, NPT, JIC, compression, or push-to-connect
Material Options: Brass, stainless steel, carbon steel, nylon, or plastic
Sizes Available: Common sizes range from 1/8" to 1" (or metric equivalents)
Seal: O-ring or washer for leak-free mounting
Pressure Rating: Up to 6000 psi (material and type dependent)
Applications:
Hydraulic systems
Pneumatic control panels
Fuel lines and coolant systems
Process equipment and instrumentation
-
Additional Information
We are manufacturer, supplier and exporter of Various Bulk Hd Elbow as per DIN 2353/ISO 8434, we also manufacture customized bulk head elbow
The Bulkhead Elbow is a high-performance 90-degree fitting designed to facilitate a change in direction of fluid or gas lines while securely passing through a panel, tank wall, or enclosure. This specialized elbow fitting features a bulkhead body with a locknut and sealing components, allowing it to be mounted firmly in place while maintaining a reliable, leak-free connection on both sides of the bulkhead.
Available in a range of thread types such as BSP, NPT, or compression connections, and materials including brass, stainless steel, carbon steel, and reinforced plastic, bulkhead elbows offer excellent compatibility across hydraulic, pneumatic, and industrial systems.
Features:
90-degree elbow fitting with bulkhead mounting design
Enables secure wall or panel penetration for tubing or piping
Available in BSP, NPT, JIC, or compression thread options
Comes with a locknut and O-ring/sealing washer for easy installation
Sizes available: 1/8" to 1" (or metric equivalents)
Pressure ratings up to 6000 psi depending on material and size
Temperature-resistant and corrosion-resistant variants available
-
