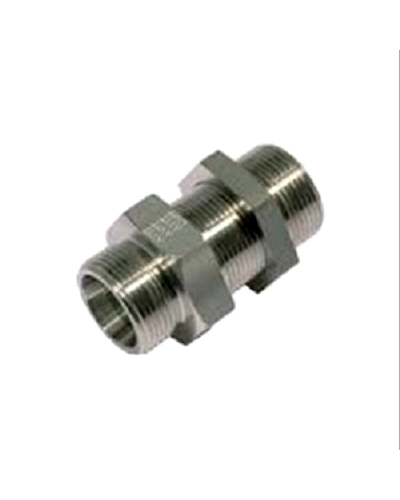

Bulk Head Straight Coupling
| ITC-HSN: | 87089900 |
| Minimum Order Quantity: | 500 |
| Accept Small Orders | No |
| Fulfilment Capacity (Per Month): | 25000 |
| Country Of Origin: | India |
A Bulkhead Straight Coupling is a robust fitting designed to connect two sections of pipe or tubing in a straight line while securely passing through a bulkhead, panel, or enclosure. It typically features threaded or compression ends on both sides and includes a locknut and sealing washer or O-ring to ensure a tight, leak-proof seal through the mounting surface.
Key Features:
Connection Type: Straight coupling with bulkhead mount
Thread/Port Options: BSP, NPT, compression, or push-to-connect fittings
Material Options: Brass, stainless steel, carbon steel, nylon, or plastic
Sizes Available: Common sizes range from 1/8" to 1" (or metric equivalents)
Seal: Locknut with O-ring or washer for secure sealing through bulkheads
Pressure Rating: Up to 6000 psi depending on material and size
Applications:
Hydraulic and pneumatic systems
Fuel, oil, and coolant lines
Panel-mounted fluid and gas transfer
Instrumentation and process equipment
-
Additional Information
We are manufacturer and Exporter of Bulk Head Straight Body as per IS 9768, DIN 2353 and ISO 8434, we also manufacture customized Bulk Head Straight Body.
Bulkhead straight couplings are engineered to create a reliable, leak-proof connection through a bulkhead, panel, or enclosure, maintaining system integrity where pipes or tubes must pass through walls or barriers. The coupling typically consists of a body that passes through the bulkhead and a locknut that tightens from the opposite side, compressing an O-ring or washer to form a tight seal.
Materials & Durability:
Brass: Excellent corrosion resistance, ideal for water, air, and general industrial use.
Stainless Steel: Superior chemical and corrosion resistance, suitable for harsh environments and food-grade applications.
Carbon Steel: High strength for heavy-duty hydraulic or pneumatic use, often coated to resist corrosion.
Plastic/Nylon: Lightweight, non-corrosive, suitable for low-pressure fluid systems.
Thread & Connection Types:
BSP (British Standard Pipe): Common in European and Commonwealth countries, available in parallel (BSPP) or tapered (BSPT) threads.
NPT (National Pipe Thread): Widely used in North America, features tapered threads for sealing.
-
