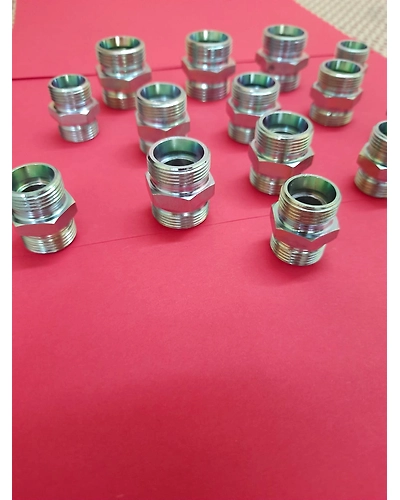

Parallel Male Stud Coupling (PMSC)
Product is not available
20.00
/ cmInclusive of all taxes
| ITC-HSN: | 87089900 |
| Minimum Order Quantity: | 500 |
| Accept Small Orders | No |
| Fulfilment Capacity (Per Month): | 50000 |
| Country Of Origin: | India |

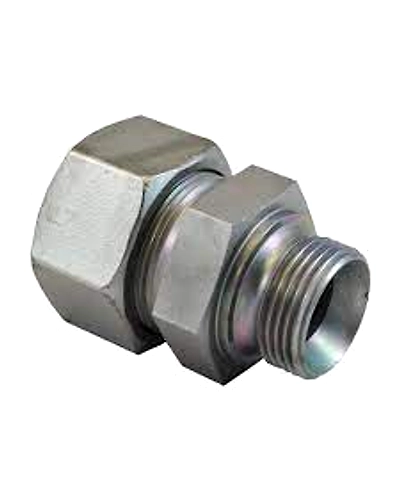

Parallel Male Stud Coupling is a threaded hydraulic fitting designed to connect hoses, tubes, or components to ports with parallel (non-tapered) threads. It features a male-threaded stud on one end and a sealing mechanism (such as a bonded seal or O-ring) to ensure leak-proof performance in high-pressure applications.
Key Features:
Thread Types: BSPP, UN/UNF, Metric (parallel threads)
Seal Options: Bonded seal , O-ring face seal (ORFS), or elastomeric seal in recessed groove
Material Options:
Carbon steel (zinc-plated or trivalent chrome finish)
Stainless steel (304, 316 for corrosion resistance)
Brass (for pneumatic or low-pressure systems)
Working Pressure: Up to 6000 PSI depending on size and material
Temperature Range: -40°C to +120°C (material and seal dependent)
Size Range: Typically 1/8" to 2” (or M10 to M42 for metric)
Applications:
Hydraulic and pneumatic systems
Industrial machinery
Agricultural and construction equipment
Marine and offshore systems
Fluid transfer and pressure control systems
-
Additional Information
We are manufacturer, Supplier and Exporter of various Parallel Male Stud Coupling precisely manufactured on CNC machine, we manufacture Parallel Male Stud Coupling as per DIN 2353/ISO 8434 standard, we also manufacture customized Parallel Male Stud Coupling.
The Parallel Male Stud Coupling is a precision-engineered hydraulic fitting designed to connect tubes, hoses, or components with parallel-threaded ports. Featuring a male-threaded stud with a flat sealing face, it ensures a reliable, leak-proof seal using a bonded washer (Dowty seal) or integrated O-ring. These couplings are widely used in high-pressure hydraulic systems, where performance, durability, and ease of installation are critical.
Manufactured from high-quality carbon steel, stainless steel, or brass, the coupling is corrosion-resistant and suitable for demanding applications across a wide range of industries, including construction, agriculture, manufacturing, and marine systems. The design conforms to international standards such as ISO 1179-1, DIN 3852, and BSPP or metric threading systems.
The parallel thread design allows for straight engagement, making it ideal for reusability and precise torque control. It is compatible with both rigid pipework and flexible hose assemblies, offering versatility and dependable sealing under static and dynamic conditions.
Key Attributes:
Thread Types: BSPP (G), UN/UNF, Metric Parallel (M)
Seal Type: Bonded seal or O-ring face (depending on design)
Material Options: Carbon steel (zinc-plated), stainless steel (AISI 316), brass
Working Pressure: Up to 6000 PSI (based on size and material)
Size Range: 1/8" to 2” or M10 to M42
Applications: Hydraulic circuits, fuel lines, pneumatic systems, process piping
-
